How to Choose the Right Latch Clamp for Industrial Applications

What Is a Latch Clamp?

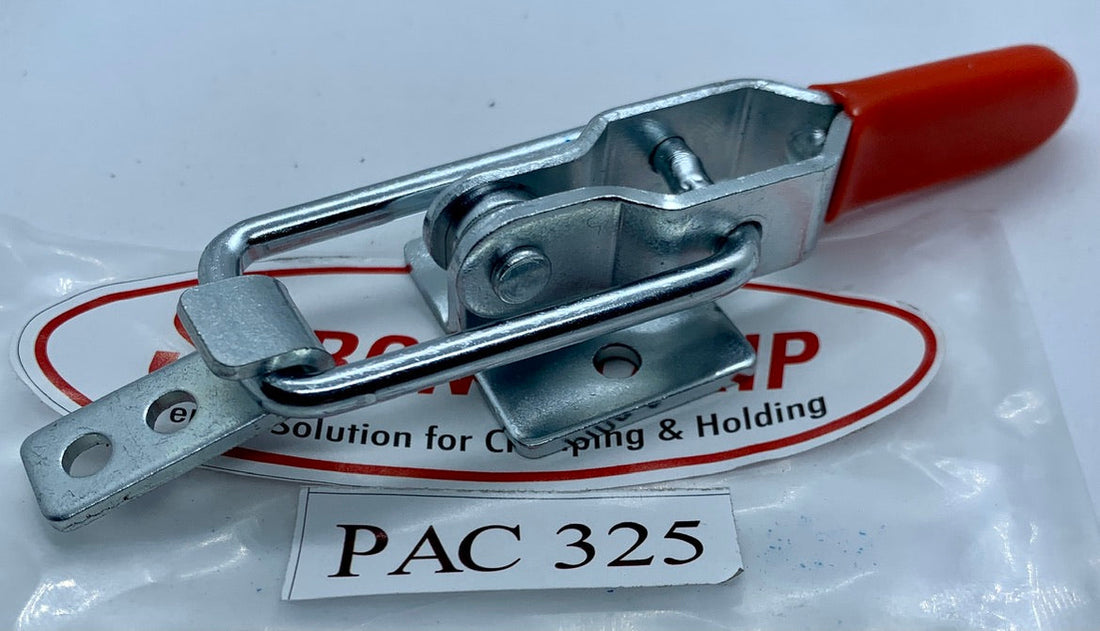

A latch clamp, sometimes called a pull-action toggle clamp, is designed to pull two components together and hold them securely in place. Unlike vertical or horizontal hold-down clamps, which apply downward clamping force, latch clamps create a pulling action that is well suited for doors, covers, lids, molds, fixtures, and access panels.

They are commonly used in manufacturing, machining, welding, fabrication, assembly, and maintenance applications where repeatable closing force and quick release are important.

Common Industrial Applications for Latch Clamps

Latch clamps are useful anywhere two components need to be repeatedly secured and released. Typical applications include:

• Machine guards and access doors
• Fixture plates and tooling
• Mold and die assemblies
• Industrial covers and lids
• Welding and fabrication fixtures
• Enclosures and equipment panels
• Containers and transport equipment

Because the clamp locks mechanically into position, operators can achieve consistent holding force without using separate fasteners each time the assembly is opened.

1. Determine the Required Holding Capacity

The first consideration is holding capacity. A clamp should provide enough force to secure the application without being unnecessarily oversized.

Consider the loads the clamp will experience during normal operation, including vibration, movement, pressure, and repeated cycling. Selecting a clamp with adequate capacity provides a reasonable safety margin while keeping the fixture practical and easy to operate.

2. Consider the Required Pull Distance

Latch clamps typically offer some degree of adjustment between the clamp body and the latch plate or hook.

The required distance depends on:

• The gap between the two components
• Material thickness
• Seal or gasket compression
• Manufacturing tolerances
• Adjustment needed during setup

An adjustable latch clamp can compensate for small dimensional variations and wear over time.

3. Evaluate Mounting Space and Orientation

Available mounting space can determine which latch clamp design works best.

Before selecting a clamp, consider:

• Available mounting surface
• Handle clearance
• Direction of operation
• Location of the latch or catch
• Accessibility for the operator

The clamp should be positioned so it can be operated safely and efficiently without interfering with nearby tooling or equipment.

4. Consider the Operating Environment

Industrial environments can expose clamps to dirt, coolant, vibration, temperature changes, and repeated cycling.

For demanding applications, durable construction and corrosion-resistant finishes can help extend service life. The clamp should also be appropriate for the expected frequency of operation and the environment in which it will be installed.

5. Choose the Correct Clamp Style

Latch clamps are only one type of toggle clamp. The correct style depends on the direction of force required.

• Latch-type clamps pull two components together.
• Vertical hold-down clamps apply downward force with an upright handle.
• Horizontal hold-down clamps apply downward force while keeping the handle low.
• Straight-line clamps apply force in a push-pull direction.

Choosing the correct clamp style improves fixture performance, operator access, and repeatability.

Selecting the Right Latch Clamp

The best latch clamp is the one that provides sufficient holding capacity, proper adjustment range, suitable mounting geometry, and reliable operation for the specific application.

JW Nice Industries offers industrial latch-type toggle clamps in multiple configurations and holding capacities for manufacturing, machining, welding, fabrication, assembly, and fixture applications.

View our complete selection of Latch-Type Clamps
